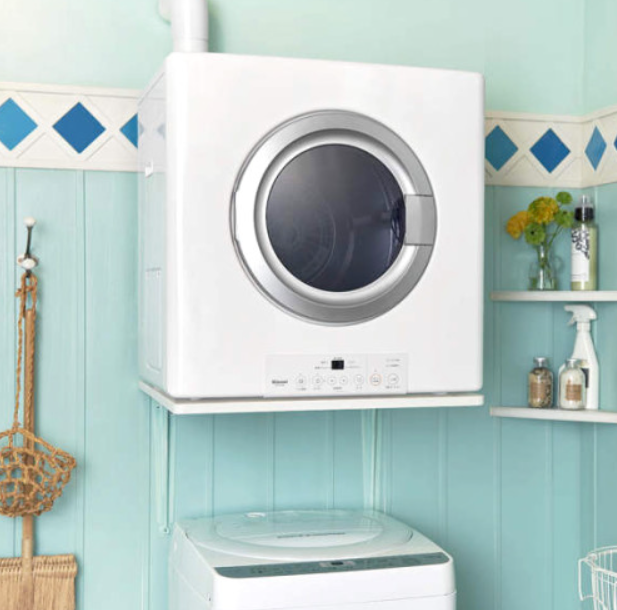

Troubleshooting Your Gas Dryer

Image Source: Souwa Reform

If your gas dryer unit is not working properly, you can perform a few basic checks before requesting service.
This guide explains how to troubleshoot your Rinnai gas dryer and interpret its error codes.

---

🧾 Step 1: Basic Checks Before Reading Error Codes

Before checking error codes or calling for service, please inspect the following:

1. Check the Laundry Load

Image Source: Rinnai

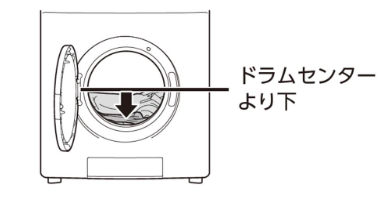

Make sure the amount of laundry does not exceed the recommended load line inside the drum.
Overloading the dryer prevents proper air circulation and can cause poor drying, overheating, or automatic shutdown.

💡 Tip: As a general rule, fill the drum no more than 70–80% full so air can circulate freely.

2. Clean the Dryer Filter

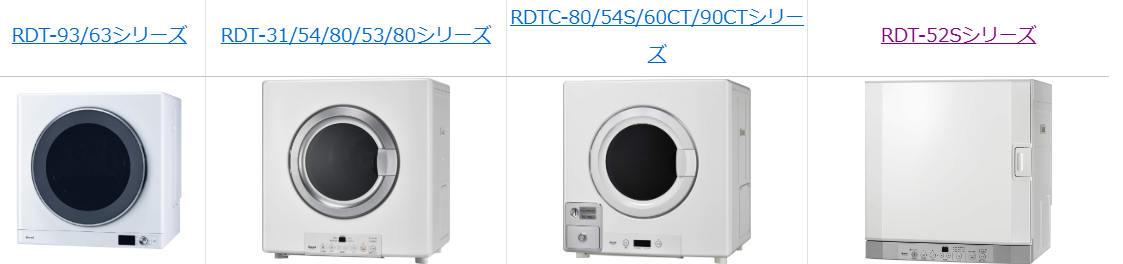

Referring to the type of the dryer you have at your property, follow the guided instruction from Rinnai official website or follow according to our English guidance.


Image Source: Rinnai

After choosing the model that fits your unit, proceed to follow the guided instruction on cleaning the dryer filter, or the lint filter inside the dryer.

3. Check the Duct and Exhaust Outlet

Image Source: Rinnai

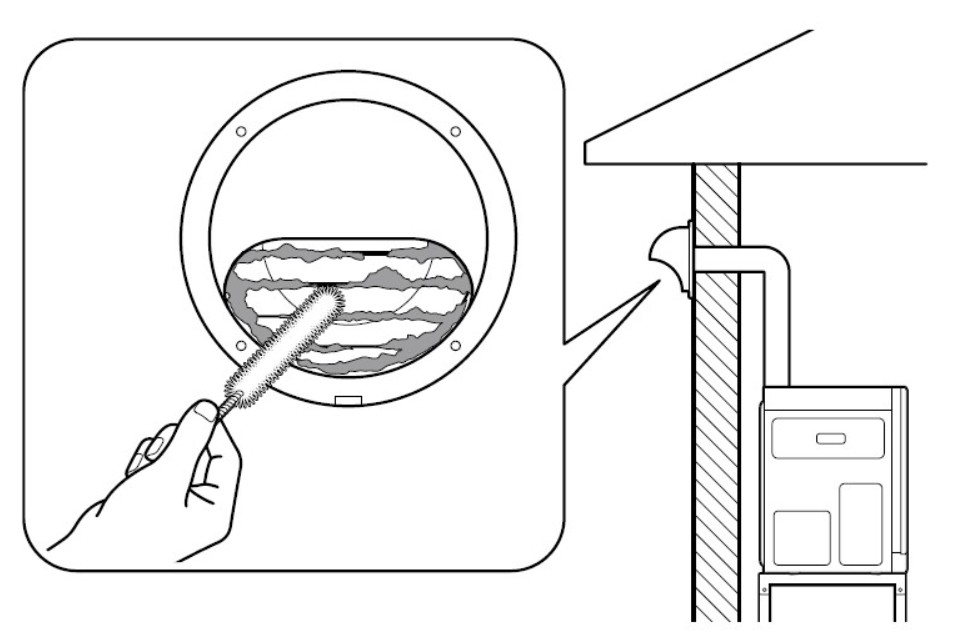

Make sure the exhaust vent is not blocked by lint, dust, or objects.
Good ventilation is essential for safe gas combustion and proper drying.

4. Reset the Unit

Just like an air conditioner reset:

1. Turn off the unit completely.

2. Unplug the power cord.

3. Wait 10–20 minutes.

4. Plug the cord back in and turn the unit on again.

💡 Tip: This often clears temporary electronic errors or safety lockouts.

5. Check Room Temperature

If the surrounding room or bathroom is too cold, condensation can form around the unit, causing abnormal readings.
Ensure the room temperature is above 5°C (41°F).

---

🔢 Step 2: Understanding Error Codes

If the issue continues, check the error code displayed on the control panel.
Refer to the table below for possible causes and suggested actions.

Code	Meaning	Action / What to Check	Possible Cause
02	60-minute continuous burn	Turn unit off, wait, then restart	Temporary safety stop
03	Set error / misconnection	Recheck operation and restart	Wiring or control issue
10	Exhaust blockage	Check exhaust duct and restart	Vent obstruction or poor ventilation
11	Ignition failure	Restart; check gas supply	Igniter or gas valve issue
12	Flame loss	Restart after confirming gas	Flame rod or ignition issue
13	CO sensor error	Restart; if repeats, stop use	CO sensor malfunction
14	Overheat / temp fuse activated	Restart; if repeats, contact service	Overheat or sensor issue
16	Freezing detection	Warm room, restart	Frozen exhaust or sensor
17	Drain failure	Unplug/restart	Drain or sensor malfunction
19	Communication / cable fault	Unplug/reconnect remote cable	Short or cable damage
20	Power supply error	Turn off then restart	Power fluctuation or breaker
29	Circulation error	Restart	Water/gas circulation blocked
31	Fan motor failure	Restart	Fan motor or control issue
32	Flame sensor error	Restart	Flame detection sensor
33	Gas valve error	Restart	Gas control valve
34	Overheat error	Restart	Thermostat or heat exchange issue
35	CO sensor failure	Restart	CO sensor or connector
41	Water supply abnormal	Restart	Water supply or valve
52	Water temp abnormal	Restart	Temperature sensor issue
54	Gas proportional valve issue	Restart	Control valve or circuit issue
61	Fan motor abnormal	Restart	Motor malfunction
64	Fan rotation issue	Restart	Fan obstruction
65	Drain error	Restart	Pump or switch issue
71	Bypass valve error	Restart	Valve sensor malfunction
99	Unit lockout / shutdown	Inspection required	Professional service needed

⚠️ Note: If the same error code appears repeatedly after resetting, stop using the dryer and submit a maintenance request.
Continuing to operate may cause further damage or safety risks.

---

🧰 Step 3: When to Contact Maintenance

If the dryer does not resume normal operation after checking and resetting, please submit a maintenance request.
